Communicating with Servers via Reverse Tunnel

QueryPie supports Reverse Tunneling as a means to communicate with resources located in a different Network Zone than QueryPie. When you install a Reverse Tunnel Agent in the Network Zone you want to access, the Reverse Tunnel Agent establishes an outbound connection to QueryPie.

By adding Tags to resources (servers), QueryPie can communicate with resources in a different Network Zone via the Reverse Tunnel.

Applying Reverse Tunnels to Servers

1. Navigate to the Administrator > Servers > Connection Management > Servers menu.

2. Select a server from the list. For new server registration, please refer to Manually Enroll Servers.

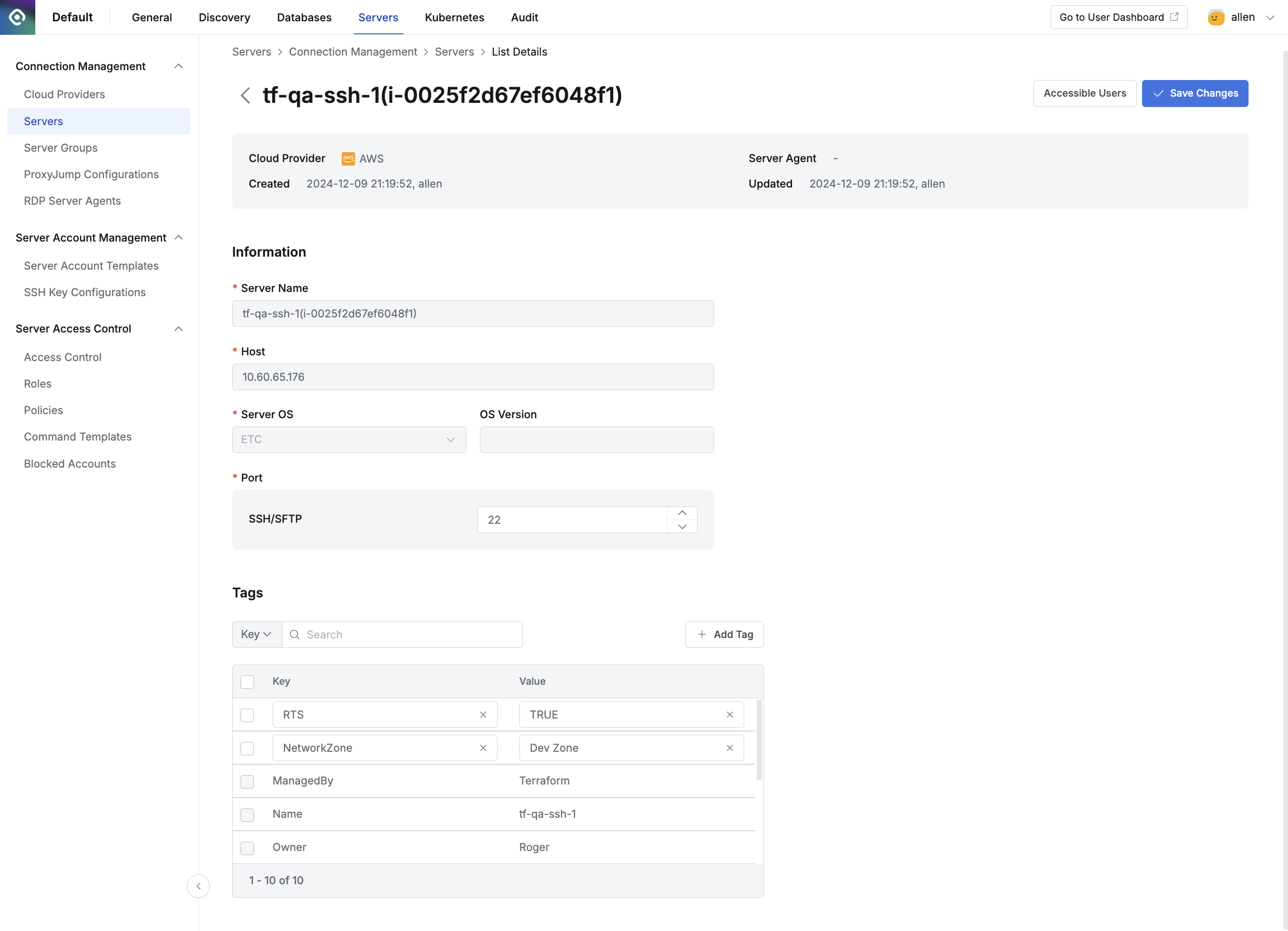

3. On the server's List Detail page, add the following Tags to the Tags section:

   1. RTS = TRUE: Servers with this Tag will attempt to connect via Reverse Tunnels.

   2. Tag of Reverse Tunnel Agent: The server will connect through the Reverse Tunnel Agent that is configured with this exact matching tag. If no Reverse Tunnel Agent has this matching tag, the connection will fail.

4. Click the Save Changes button to save the settings.
