Access Control Logs​ㅤ

Overview

This page logs the history of granting and revoking direct server access permissions assigned to QueryPie users or groups.

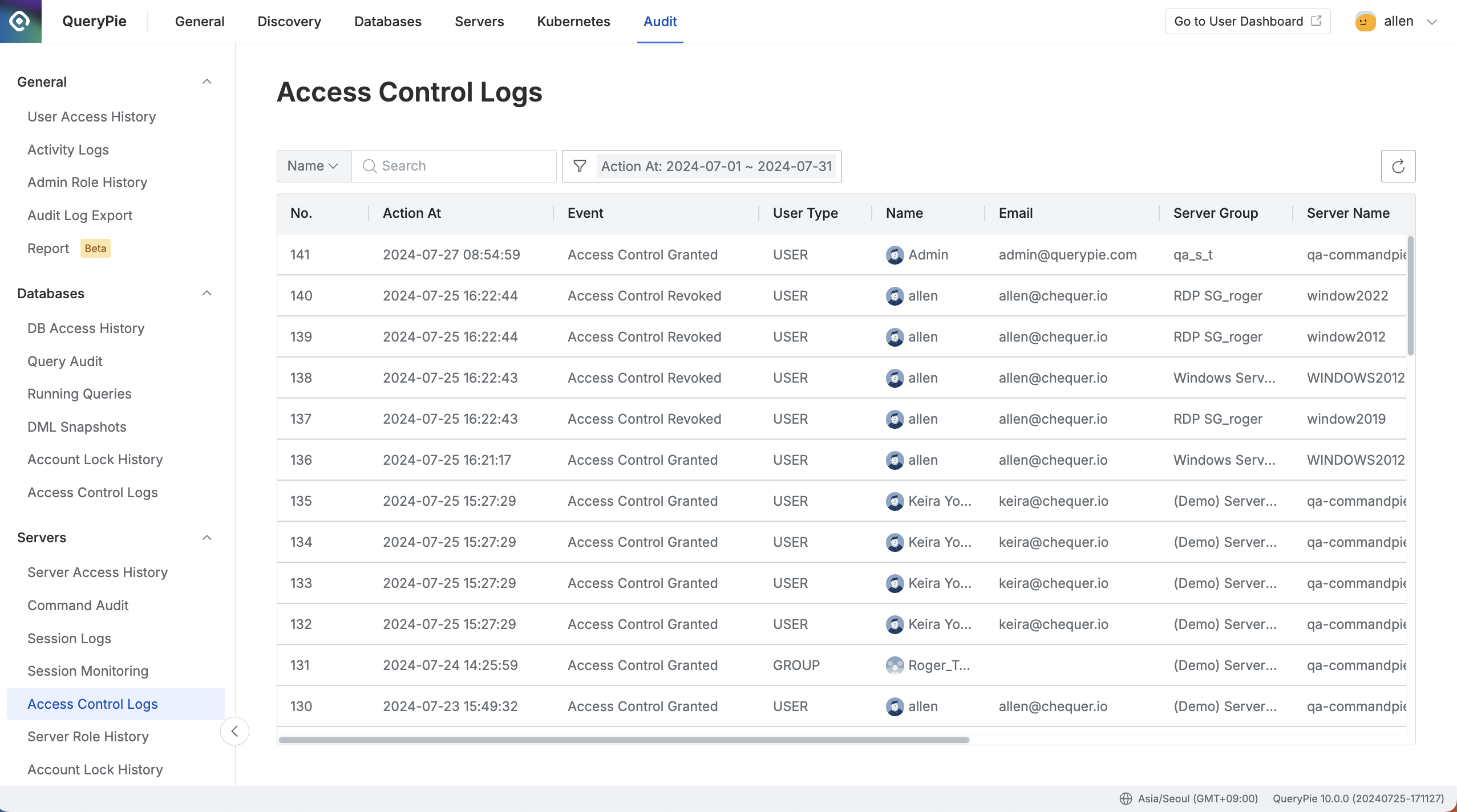

Viewing Access Control Logs


Administrator > Audit > Servers > Access Control Logs

  1. Navigate to the Administrator > Audit > Servers > Access Control Logs menu.

  2. Logs are displayed in descending order based on the current month.

  3. You can search the table using the search field in the upper left corner with the following criteria:

    1. Name: User name

    2. Email: User email

    3. Server Group: Server group name

    4. Server Name: Server name

    5. Host: Server host

    6. Account: Server account

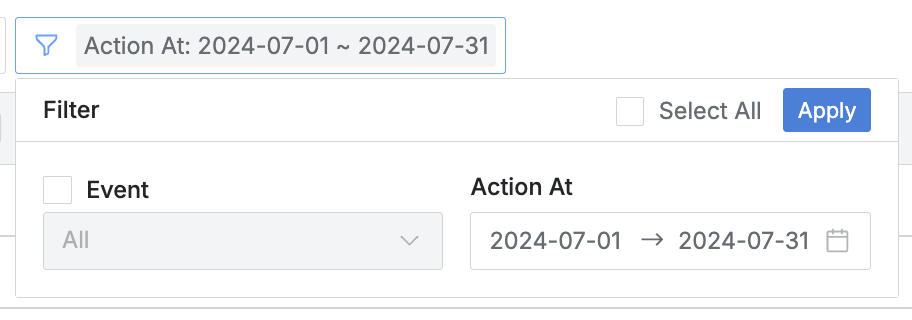

  4. You can apply AND/OR filters by clicking the filter button on the right side of the search field with the following options:

    1. Event: Type of event

      1. Access Control Granted: Permission granted history

      2. Access Control Revoked: Permission revoked history

    2. Action At: Date range of permission grant/revocation

  5. You can refresh the log list using the refresh button in the upper right corner of the table.

  6. The table provides the following column information:

    1. No: Event identification number

    2. Action At: Date and time of permission grant/revocation

    3. Event: Event related to the permission

      1. Access Control Granted: Event when permission is granted to a user/group

      2. Access Control Revoked: Event when permission is revoked from a user/group

    4. User Type: Type of user/group

    5. Name: Name of the target user/group

    6. Email: Email of the target user

      1. Not displayed for groups

    7. Server Group: Server group name

    8. Server Name: Server name

    9. Host: Server host

    10. Expiration Date: Expiration date of the granted permission (revocation date)

    11. Account: Server account

    12. Action By: Name of the administrator who granted/revoked the permission or "System"

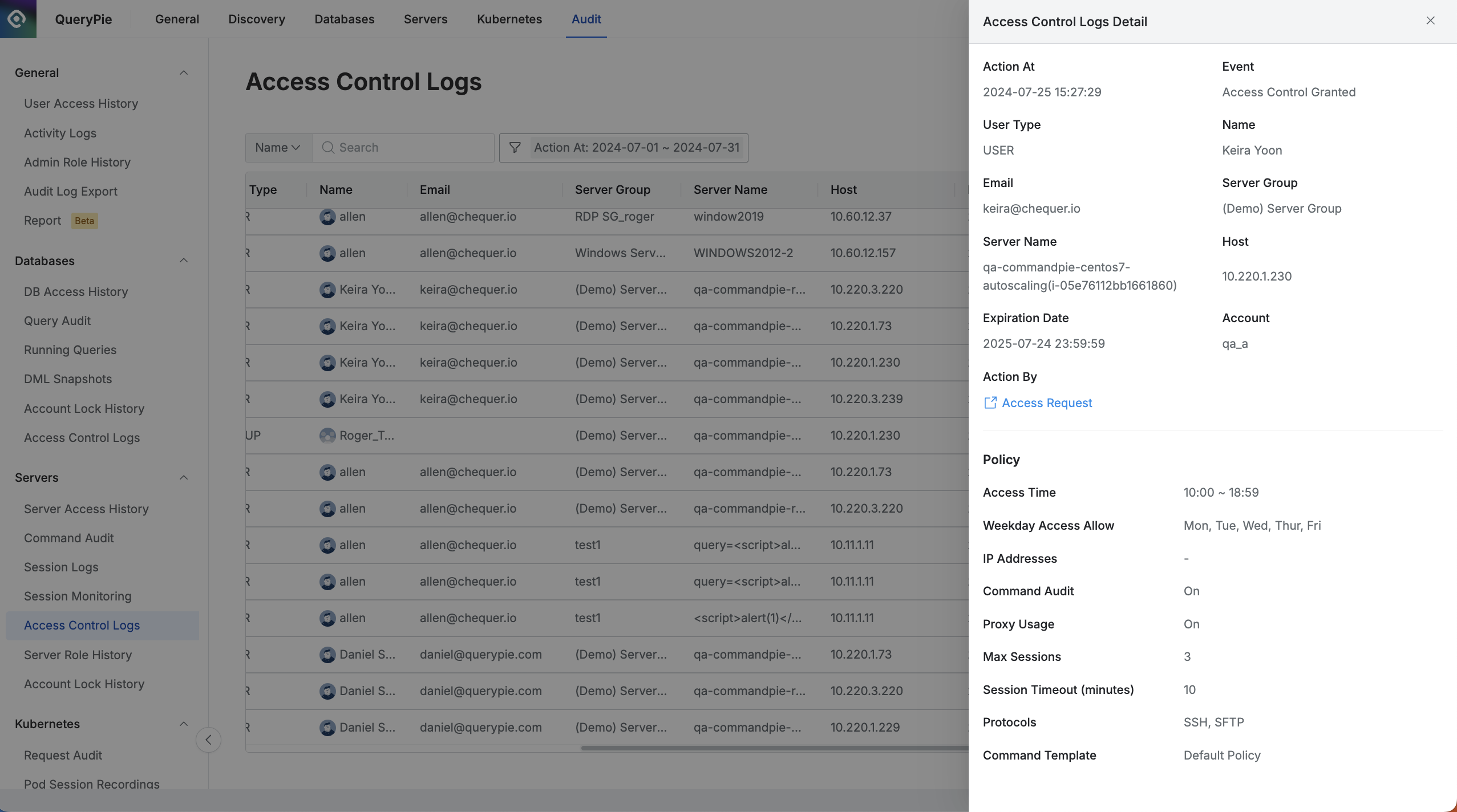

Viewing Access Control Log Details

Click on each row to view detailed information.


Administrator > Audit > Servers > Access Control Logs > Access Control Logs Detail

  1. At the top, the following basic event information is displayed:

    1. Action At: Date and time of permission grant/revocation

    2. Event: Event when permission was granted/revoked from a user/group

    3. User Type: Type of user/group

    4. Name: Name of the target user/group

    5. Email: Email of the target user

    6. Server Group: Server group name

    7. Server Name: Server name

    8. Host: Server host

    9. Expiration Date: Expiration date of the granted permission (revocation date)

    10. Account: Server account

    11. Action By: Name of the administrator who granted/revoked the permission or "System"

      • If permissions were granted through a workflow, an Access Request link appears, allowing you to open the Request page in a new window.

  2. At the bottom, the policies applied to the granted/revoked permissions are listed:

    1. Access Time: Allowed access time

    2. Weekday Access Allow: Allowed access days

    3. IP Addresses: Allowed IP addresses

    4. Command Audit: Command audit status

    5. Proxy Usage: Whether access through Proxy (Agent) is allowed

    6. Max Sessions: Maximum number of allowed sessions

    7. Session Timeout (minutes): Session timeout duration

    8. Protocols: Allowed protocols

    9. Command Template: Applied restricted command set
