Custom Data Source Configuration and Log Verification

Custom Data Source is a new feature that provides simple access control through proxy for vendors not natively supported by QueryPie. By providing simple access control, it allows users to safely access a wider variety of data sources. This feature was added in version 10.2.6.

Key Features

• Multi-vendor Support : Access to data sources not supported by QueryPie
• TCP-based Access Control : Provides user and IP-based access control
• Agent-based Connection : Can connect to third-party SQL tools through QueryPie Agent

Creating Custom Data Source Connections

1. Navigate to DB Connections Menu

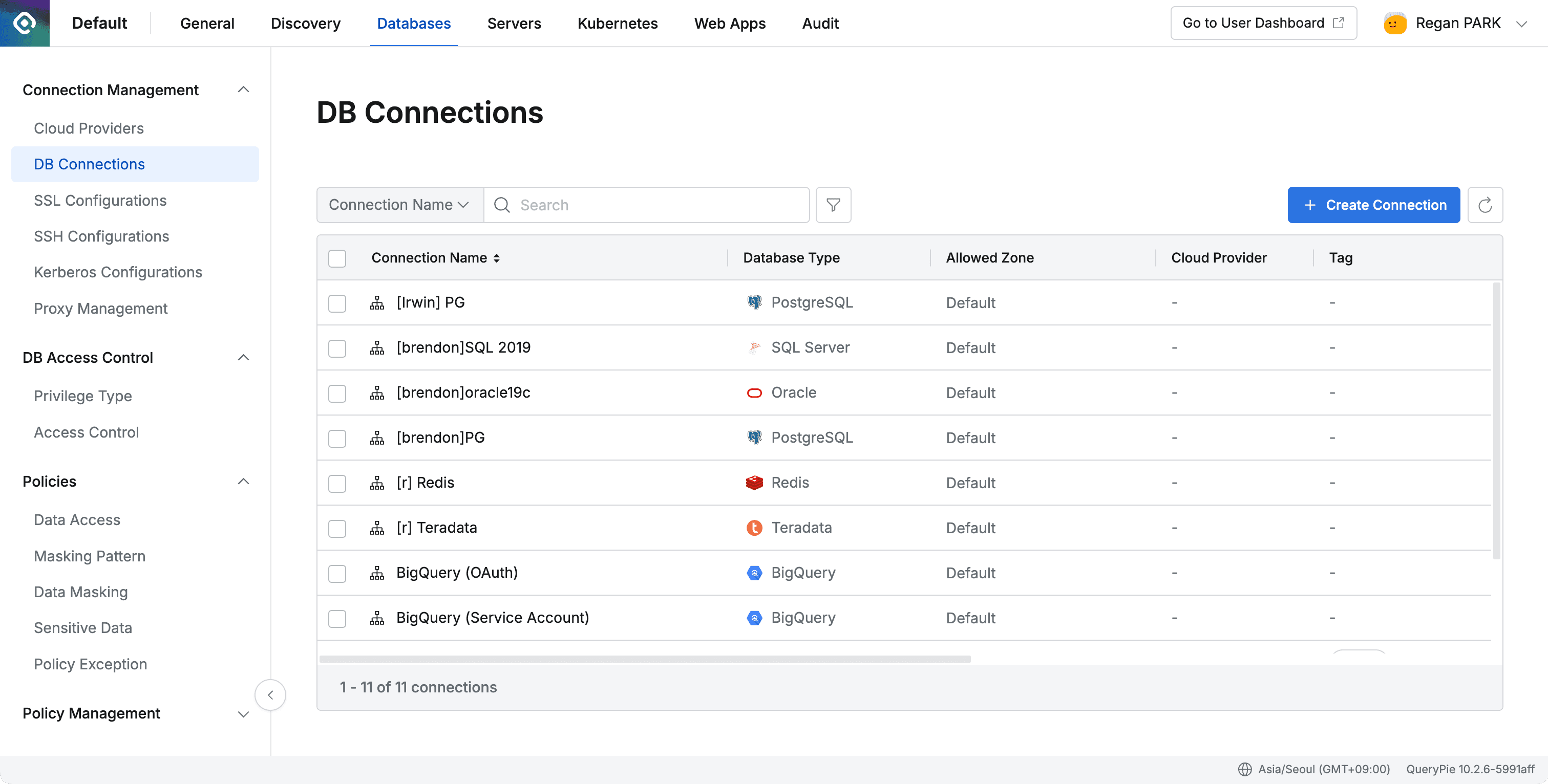

   • Select Admin > Databases > Connection Management > DB Connections.
   • Click the + Create Connection button.



2. Create Custom Data Source

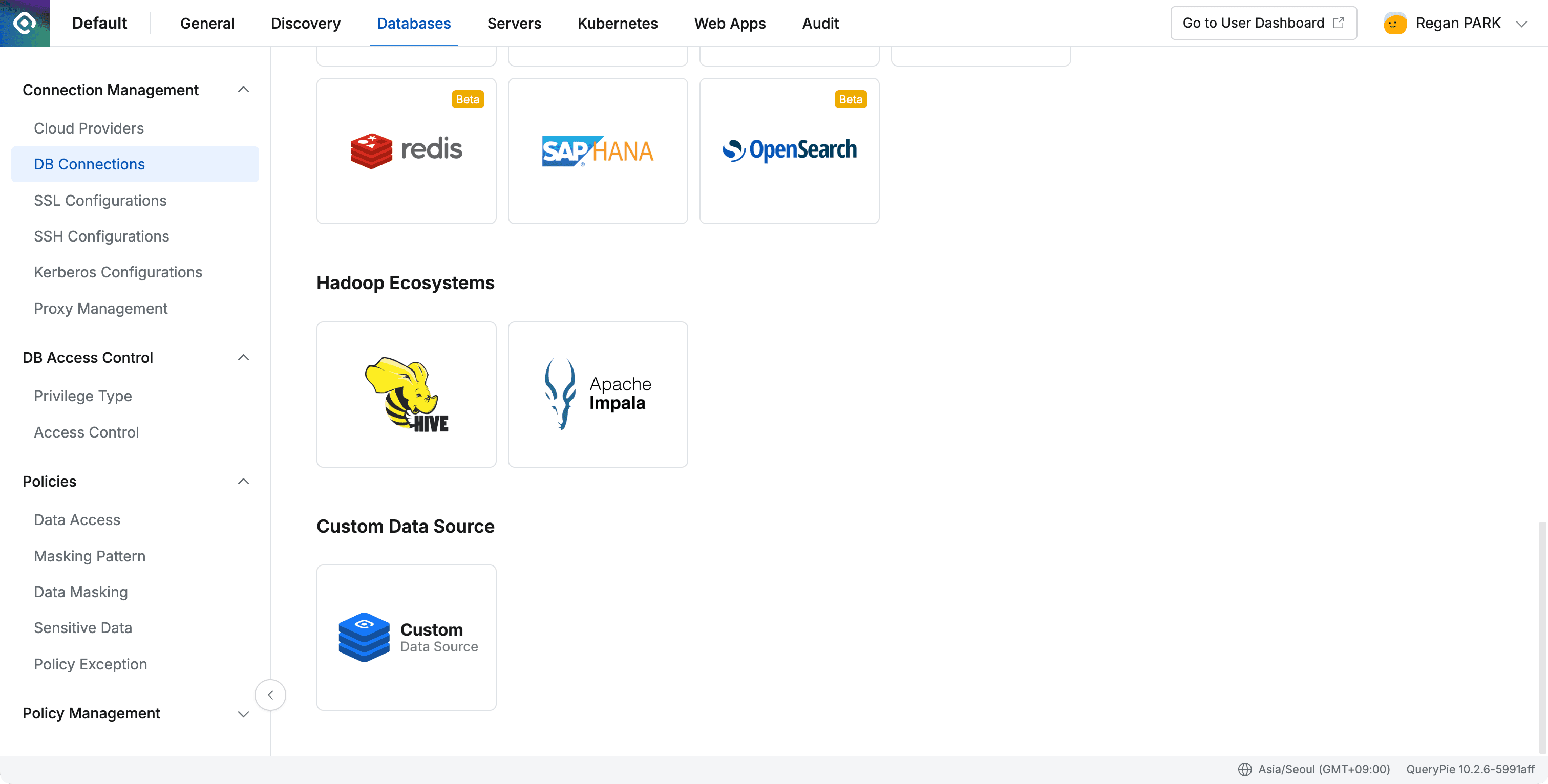

   • Click the Custom Data Source icon.



   • When creating, the following warning message is displayed:
     Restrictions:
     • Only TCP access control is available; Privilege control and Query Audit are not supported.
     • Access is only possible through a proxy; it cannot be accessed via the web editor.

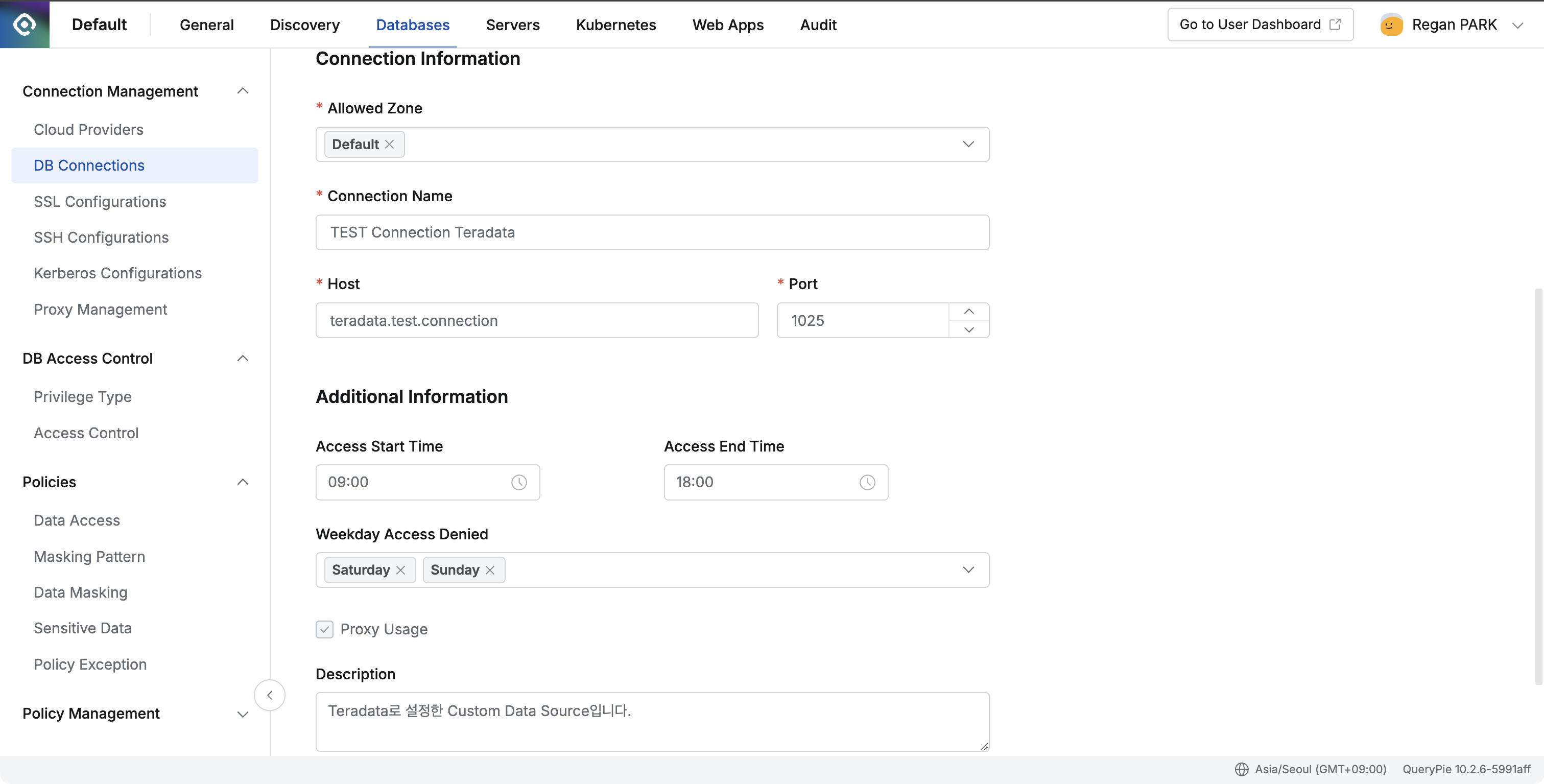

   • Enter the following connection information according to your desired settings. ****



     • Connection Name (Required) : Enter connection name
     • Host (Required) : Host address of the target data source
     • Port (Required) : Port number of the target data source
     • Allowed Zone (Required) : Set IP range to allow access
     • Access Time (Optional) : Set access allowed time
     • Weekday Access (Optional) : Set access allowed weekdays
     • Proxy Usage : Always enabled (cannot be disabled)
     • Description (Optional) : Add description if needed
   • After entering, click the Next button at the bottom to complete creation.
3. Creation Complete
   • After creation, Database Type is displayed as Custom Data Source in the DB Connection list.
4. Modifying and Deleting Custom Data Source

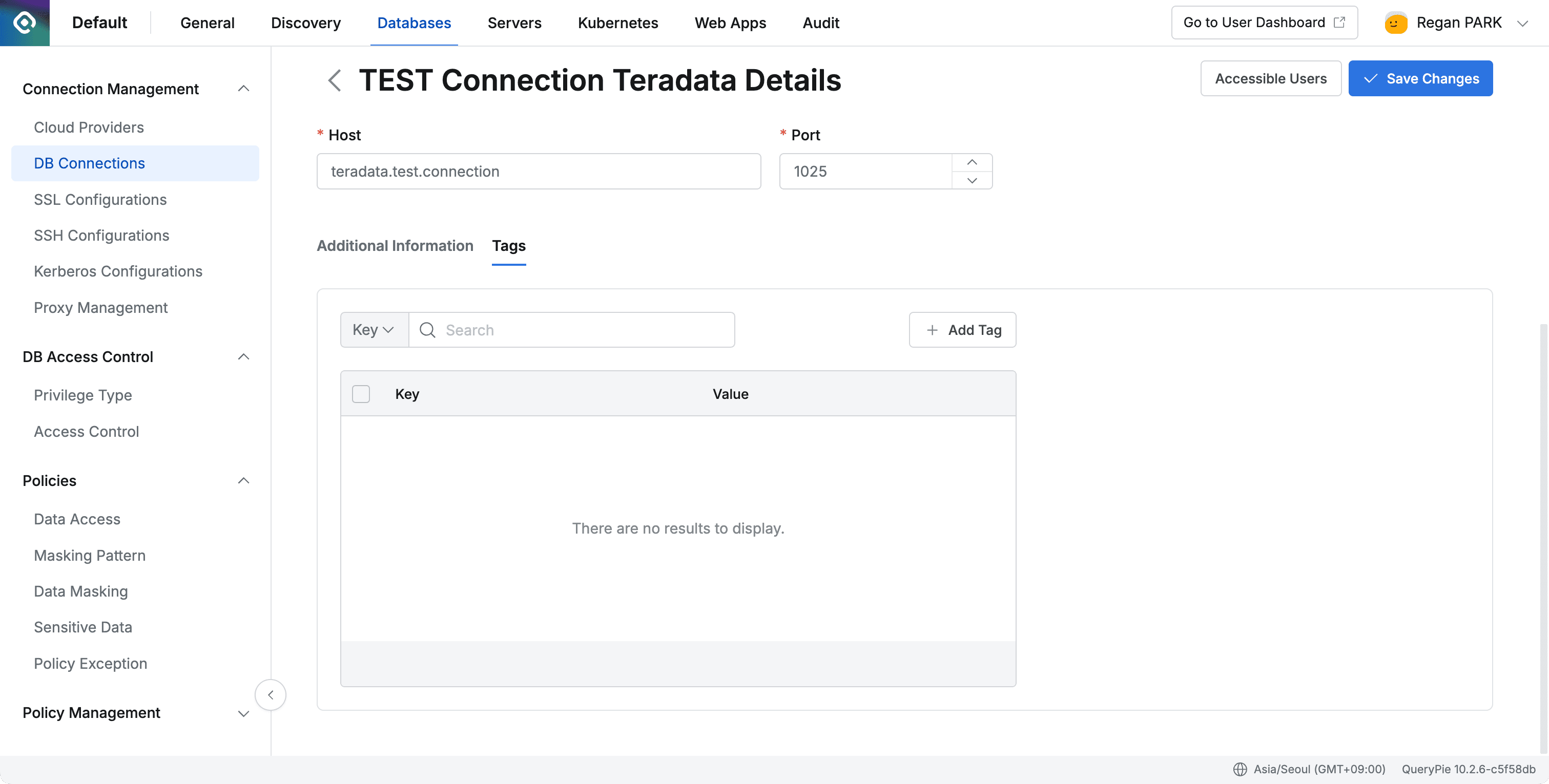

   • Modification
     • Select the Custom Data Source you want to modify from the Admin > Databases > Connection Management > DB Connections list.
     • You can change desired items and add Tags.
     • After modification, click the Save Changes button in the top right to save changes.



   • Deletion

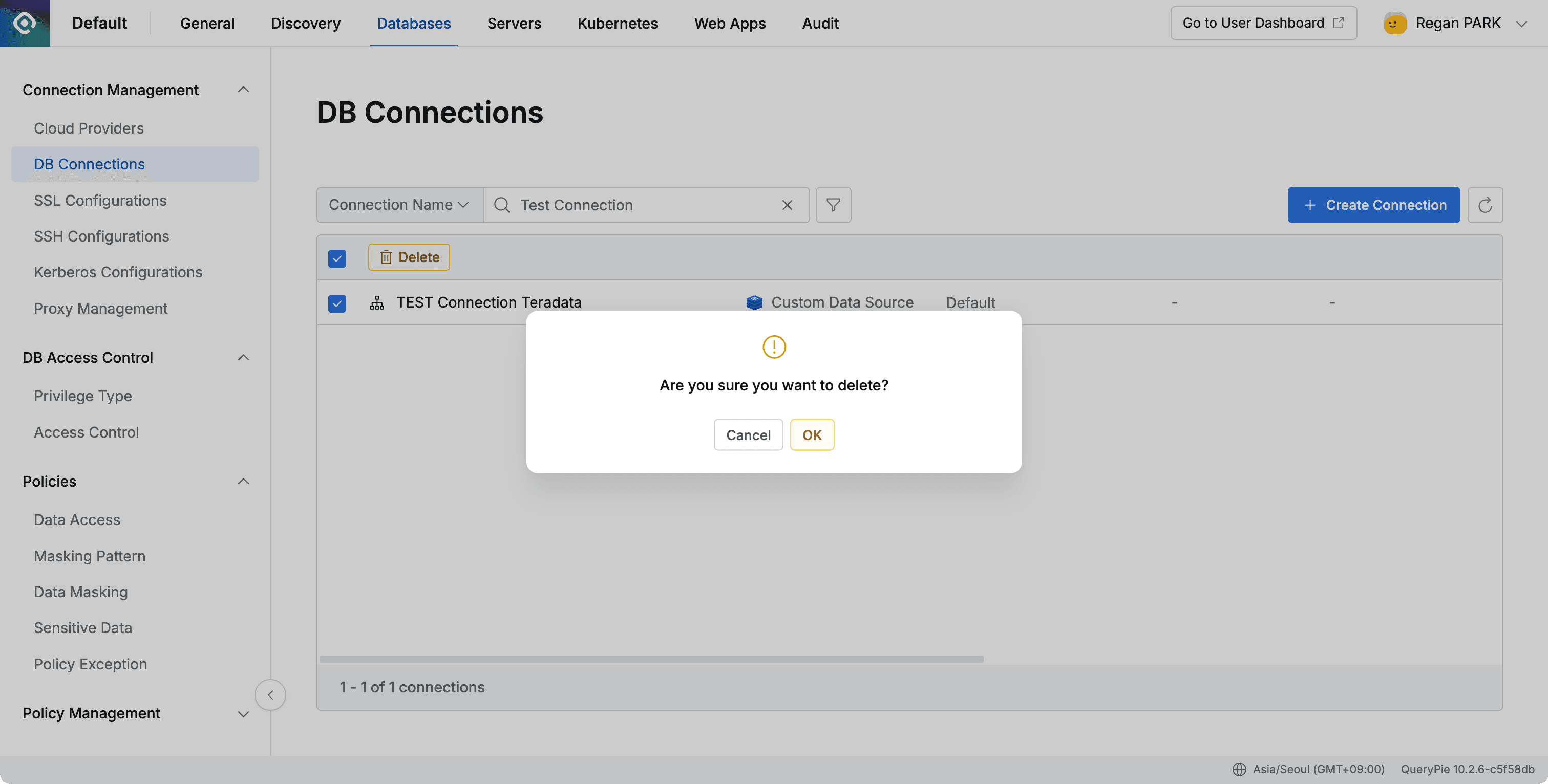

     • Select the checkbox on the left of the connection you want to delete from the DB Connections list, then click the Delete button.
     • After the “Are you sure you want to delete” message appears, click the OK button to delete the connection.



Setting Up Access Control

1. Navigate to Permission Grant Modal

   • Select Admin > Databases > DB Access Control > Access Control.
   • Click on the user you want to grant permissions to go to the Detail page.
   • Click the + Grant Privilege button in the middle right.

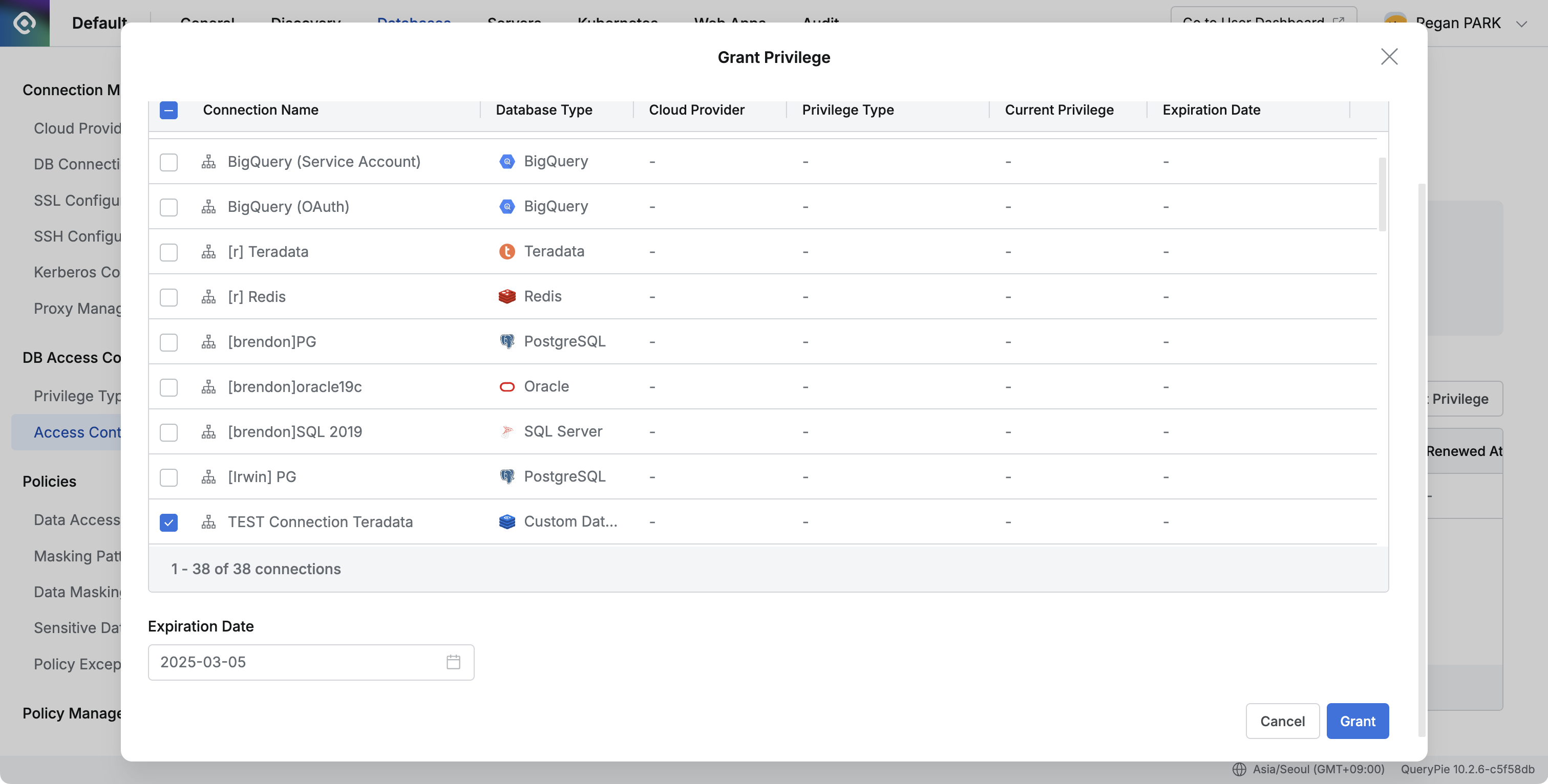

2. Granting Permissions

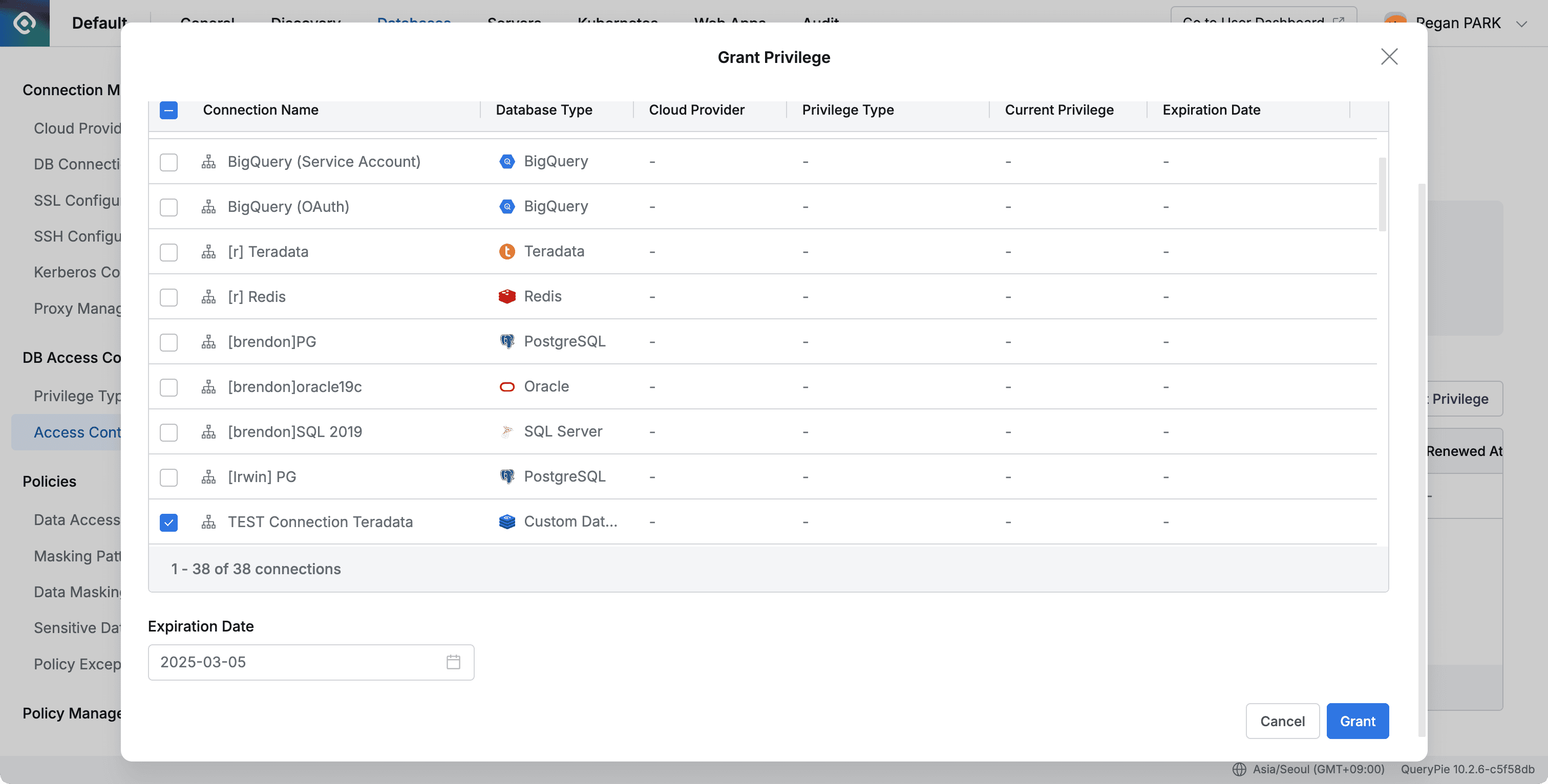

   • Click Custom Data Source in the permission grant modal left checkbox.
   • Custom Data Source’s Privilege is displayed as ”-” with no separate type.
   • You can set an expiration date when granting.
   • After selection is complete, click the Grant button to grant permissions.



3. Revoking Permissions

   • By default, permissions are maintained until the Expiration Date requested by the user.
   • To revoke permissions granted to users in the middle, revoke the Privilege.
     • Select Admin > Databases > DB Access Control > Access Control > User.

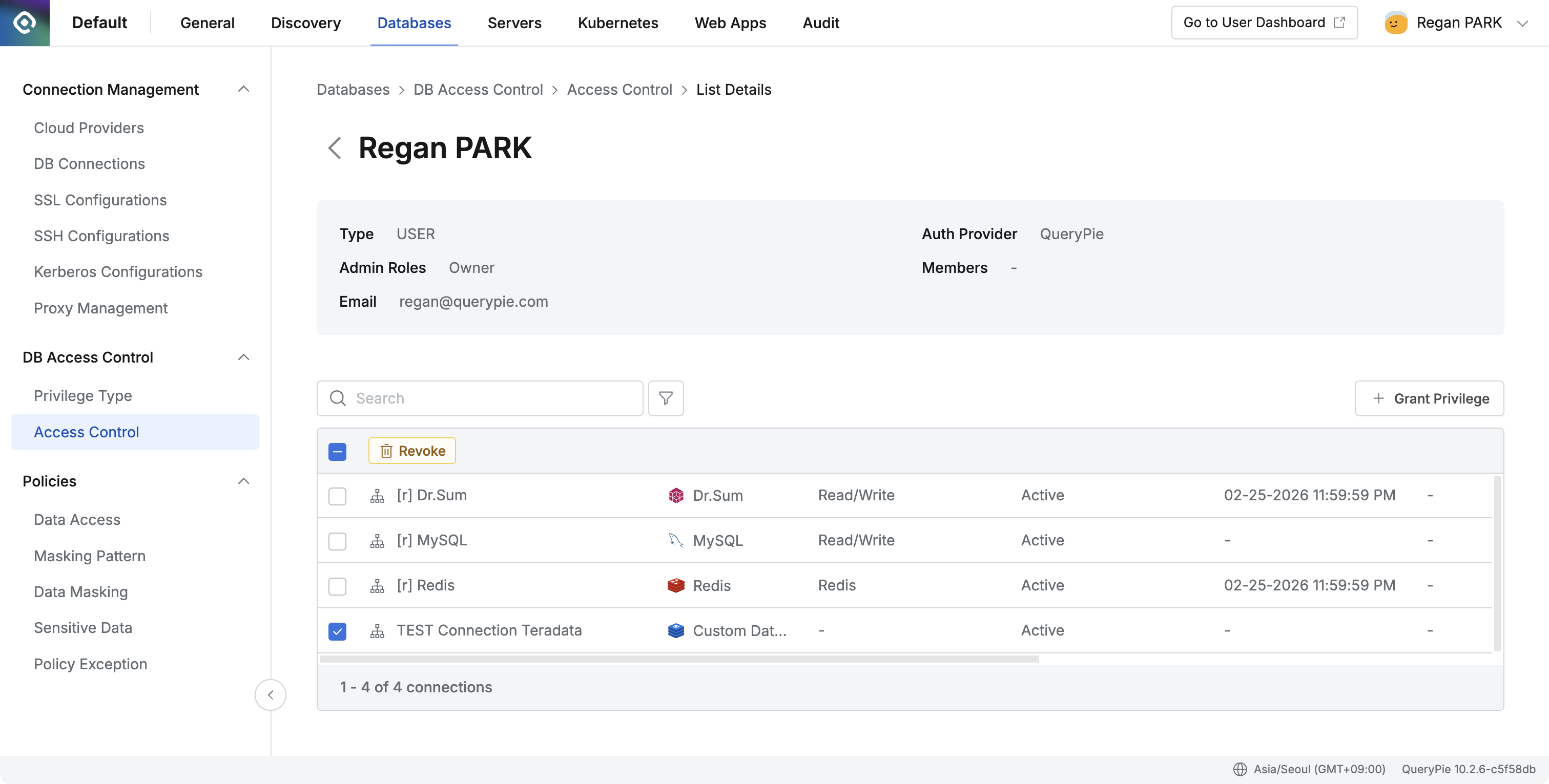

     • Select the connection to revoke permissions from on the Detail page, then click the Revoke button.



Checking Audit Logs

1. DB Access History
   • Select Admin > Audit > DB Access History.
   • Check logs
     • Database Type: Displayed as ‘Custom Data Source’.
     • Connected From: Displayed as ‘Proxy’.
     • Success/Failure information for Connect/Disconnect can be checked.
       • When attempting to connect outside allowed access time, the same message “This connection is not accessible at this time. Please ask your administrator.” is displayed for all vendors.
2. Activity Logs
   • Records are left when administrators create/modify/delete Custom Data Source connection information.
