Communicating with Servers through Reverse Tunnel

QueryPie supports Reverse Tunneling as a means to communicate with resources in different Network Zones. When you install a Reverse Tunnel Agent in the Network Zone you want to access, the Reverse Tunnel Agent establishes a connection toward QueryPie (Outbound).

You can communicate from QueryPie to resources in different Network Zones through Reverse Tunnels by adding Tags to resources (servers).

Applying Reverse Tunnels to Servers

1. Navigate to Administrator > Servers > Connection Management > Servers menu.
2. Select a server from the list. For new server registration, please refer to Manually Registering Individual Servers.

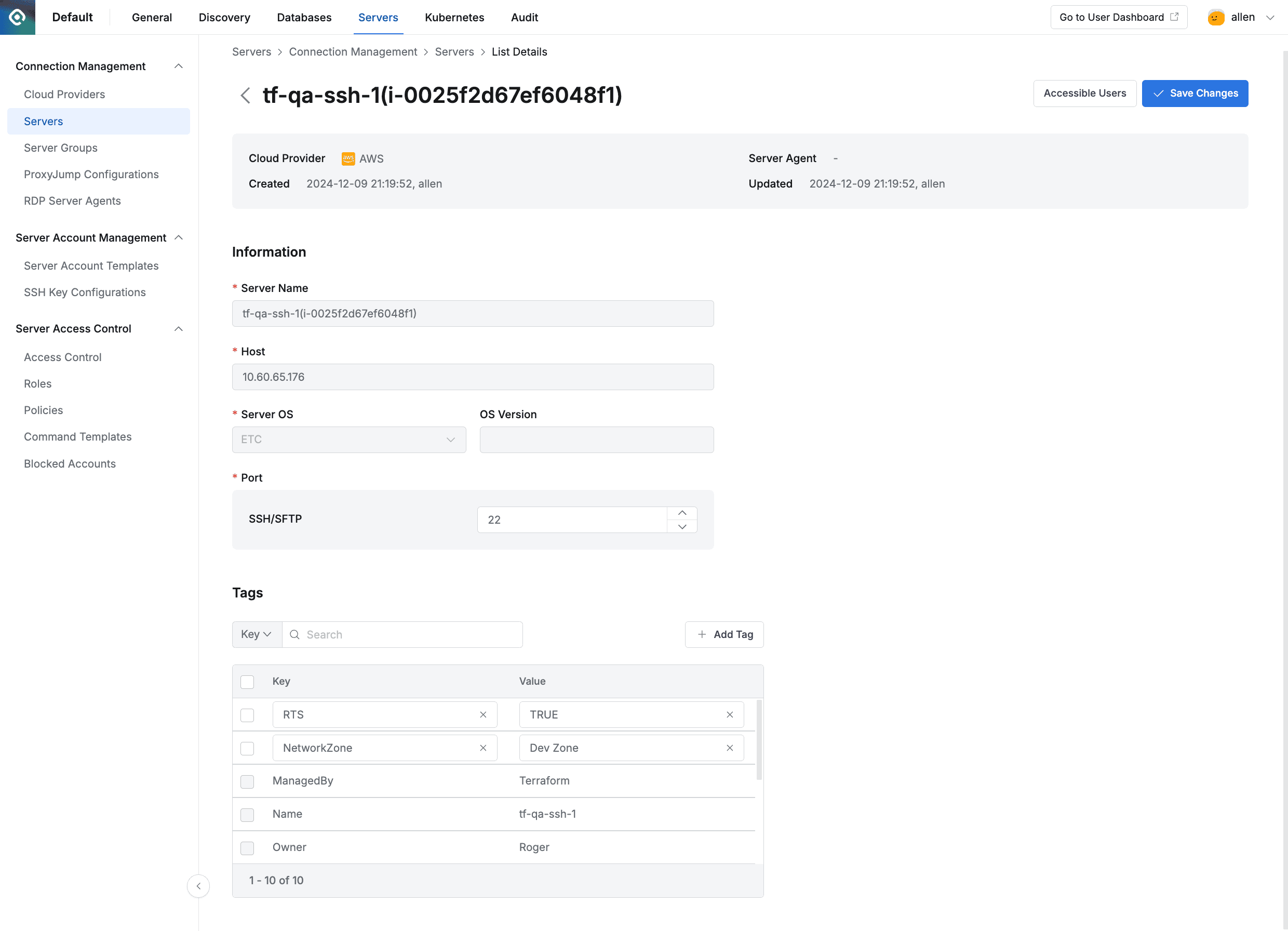

3. Add the following Tag to the Tags section in the Server List Detail page.
   1. RTS = TRUE : Servers with this Tag will attempt to connect through Reverse Tunnels.
   2. Reverse Tunnel Agent Tag : Connects to the server through a Reverse Tunnel Agent with the same Tag. If there is no Reverse Tunnel Agent with the same Tag, connection will fail.
4. Click the Save Changes button to save the settings.
